CNC Lifting Gemstone Lapidary Machine Integrated Gem Faceting Machine Polishing

Brand Name : Fable

Model Number : FJM-S2019

Place of Origin : China

MOQ : 1 set

Price : negotiation

Payment Terms : T/T, Western Union,Paypal,Alipay,Online transfer payment

Supply Ability : 500 sets per month

Packaging Details : export standard wooden frame package

Main functions : Faceting and Polishing the Gemstone

wheels Index : 64 & 96

Motor Power : 250W

Size : 78cm*45cm*105cm

Faceting Gemstone hardness : up to 9

Speed of Mainshaft : 0 to 2800r/min

Contact Now

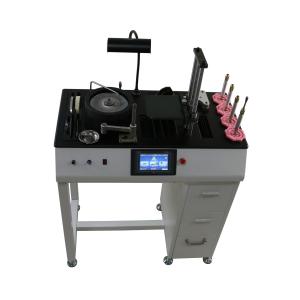

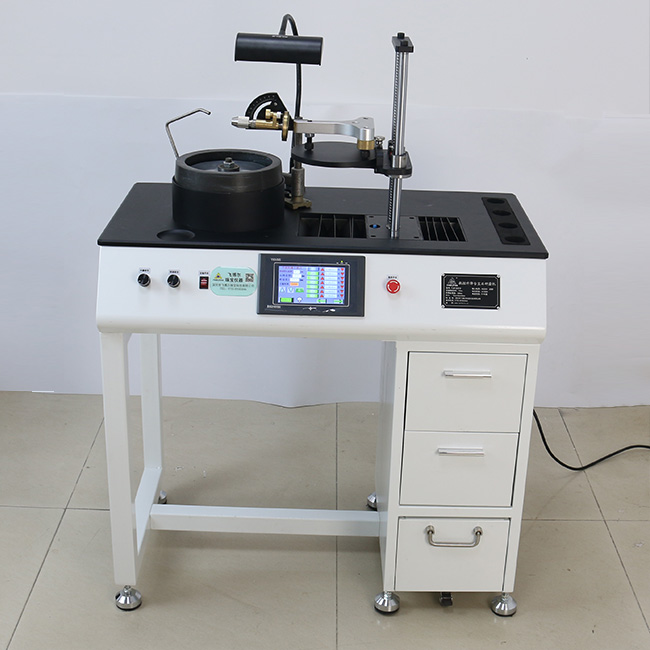

Fable Integrated CNC lifting table gem Lapidary machine/ Faceting machine FJM-S2019

Main Parameters:

Main functions: Faceting and Polishing the Gemstone.
With Faceting holder,the optional angle gauge for geting the exact faceting and angle of the gem.
With shaping holder for geting the good shape of the gem.
To Faceting the gemstone with hardness up to 9.
Faceting Hand wheels Index: 64 & 96.
The range of angles of gems that can be processed: 0°~90°;
Motor Power:250W.
Speed of Mainshaft: Adjustable from 0 to 2800r/min(Frequency).
Input power:AC220V.
Size : 78cm*45cm*105cm.
With a Faceting Dish and its Dia. of 150mm,3 pcs diamond disk for Faceting polishing( 400#; 800#; 1200#) , a pink hand,a stool,10 pcs of dot sticks.
X axis (moving left and right): accuracy: ±3mm, total stroke: 0~170mm;
Z axis (platform lifting): accuracy: ±0.01mm, total stroke: 0~270mm
Specifications:
1. The integrated design of the grinding machine and the tripod, and the design of a reasonable tool position, convenient to access various tools during operation and use;
2. Designed a circulating water supply system, which can precisely adjust the water flow speed. There is no need to continuously add water during use, and there is no need to install an indoor water receiving and drainage system;
3. Lighting system: equipped with 8W high-brightness LED surface light source;
4. Tool storage: the workbench is equipped with a metal storage cabinet, which is suitable for storing tools and consumables such as octagonal hands and grinding discs;
5. This equipment uses numerical control to accurately control the height of the lifting platform, and can save the angle values of multiple levels at the same time;
6. The equipment solves the shortcomings of the cumbersome and poor accuracy of the original manual screw positioning. The user only needs to enter the corresponding gem angle, and the platform can automatically rise to the height required for carving and grinding for the user to use;
7. The platform motion parameters and storage parameters are all operated and displayed on the color touch screen, all functions and data are at a glance, all data can be saved after power-off, easy to understand and convenient to use, and octagonal hand or manipulator can be used alternately;
8. The spindle motor is also equipped with frequency conversion speed regulation function, which is convenient for users to grind different kinds of gem materials when they need different motor speed problems;
9. This equipment adopts a 2-axis mechanical motion control platform, namely X motion axis and Z motion axis. The Z axis uses a stepper motor to drive the screw rod mode;
